PE5125ST Keyboard controller, for Matrix switcher, onvif protocol integrated, PTZ control by RS485, Pleco D, P, etc.
Quick Detail:
User log-in and permission
onvif protocol supported
1 system administrator, 1 user administrator, 64 operation user
Operation mode including:
Matrix operation: to work with PE full series matrix switcher, including usual operation, menu programming, etc.
DVR operation mode: to have all functions of DVR panel
speed dome operation mode: it can control PLECO D/P Samsung, protocol PTZ or Speed dome camera
Communication port:
Joystick and button self-inspection:
Macro function
Communication mode: RS-485/RS-422/RS-232/Ethernet 10/100M
Description:
PE5125ST is Main keyboard for Matrix switcher, also it is a universal network keyboard controller for DVR and pan-tilt (speed dome), integrate with Pelco, Samsung, etc. protocol, Operation keys display on 240x128mm LCD by icon, LCD indicate system status, operation success indicator, with several tone available, volume can set. With 3-D joystick 10/100M Ethernet port, 1 Contact closure port, every port can set separately, Communication of RS485/RS422/RS232 and baud rate available to set.
Specifications:
| Communication mode | RS-485/RS-422/RS-232/Ethernet 10/100M |
| Communication speed | can set |
| Connection method | RJ45 |
| Relay drive | 1A/220V/110VAC or 3A/24VDC |
| Key quantity | 47 |
| Pan-tilt control | 3 or 4-asis joystick (3-joystick is default) |
| Power failure protection | 10 years |
| Working temperature | -10℃ ～ +45℃ |
| Working voltage | 9VDC |
| Power | 5.0W |
| Weight | 1.5KG |
| Dimension | 370(L)×190(W)×55(H)mm |
| Installation method | desktop |

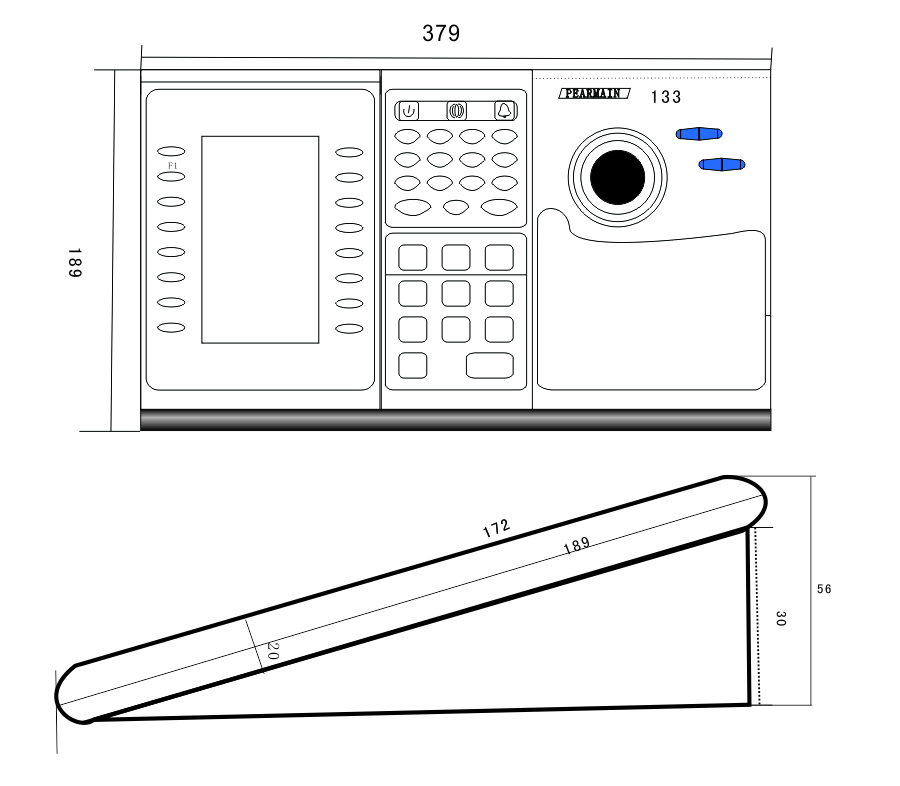

Dimensions:
